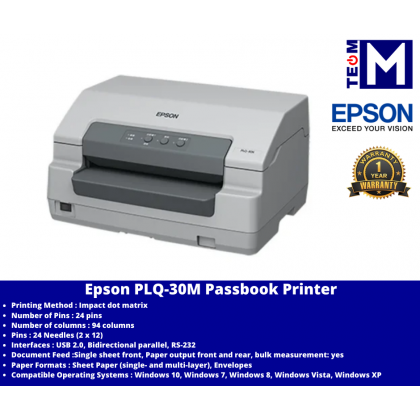

Flexible passbook printer

• Media flexibility Trouble-free handling of cheques and passbooks

• Quiet operation Noise levels as low as 55dBA

• Energy-efficient 4.5W standby power consumption

• Low TCO Long-life ribbon

• Flexible Handles passbooks up to 2.6mm thick

Low total cost of ownership

Delivering substantial cost and energy savings, the PLQ-30M has a very low standby power consumption of 4.5W. Further reducing TCO, it can print around 10 million characters in draft mode between ribbon changes.

Flexible

It offers excellent passbook handling and data processing flexibility, thanks to its 128kb memory and capacity for passbooks up to 2.6mm thick.

Easy installation

Simple to install, the PLQ-30M features a choice of emulations plus parallel, serial and USB interfaces as standard for an easy fit into most IT environments.

Ultra-high-speed draft mode

High speed print speeds of 585 cps.

Technology

Printing Method : Impact dot matrix

Number of Pins : 24 pins

Number of columns : 94 columns

Pins : 24 Needles (2 x 12)

Print

Printing Speed : HighSpeed-Draft: 10 cpi: 585 chars/s, Draft: 10 cpi: 390 chars/s, NLQ: 10 cpi: 195 chars/s, LQ: 10 cpi: 130 chars/s

Barcodes :Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, UPC-A, UPC-E

Carbon Copies : 6 plus one original

Character Tables : PC437, PC850, PC858, PC864, ISO-8859-1, ISO-8859-15

Printing Resolution : 60.120.240 x 60 DPI

Connectivity

Interfaces : USB 2.0, Bidirectional parallel, RS-232

Paper / Media Handling :

Document Feed :Single sheet front, Paper output front and rear, bulk measurement: yes

Paper Formats : Sheet Paper (single- and multi-layer), Envelopes

Paper Thickness Multi Part : 0,12 mm - 0,53 mm

Paper Thickness Single Sheet : 0,065 mm - 0,19 mm

General

Power consumption : 64 Watt, 4,5 Watt (standby)

Supply Voltage : AC 220 V - 240 V, 50 Hz - 60 Hz

Product dimensions : 384‎ x 280 x 203 mm (Width x Depth x Height)

Product weight :  8,9 kg

Supported Temperature : Operation 5° C - 35° C, Storage -30° C - 60° C

Supported Humidity : Operation 10% - 80%

Compatible Operating Systems : Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP

Mean Time Between Failures : 12.000 hours

Print Head Life : 400 Million Strokes/Wire

Noise Level : Operation (Roll): 55 dB (A)

Other Features : Emulations

IBM PPDS, PR2, ESC/P2

Input Data Buffer : 128 kB
