| Model |

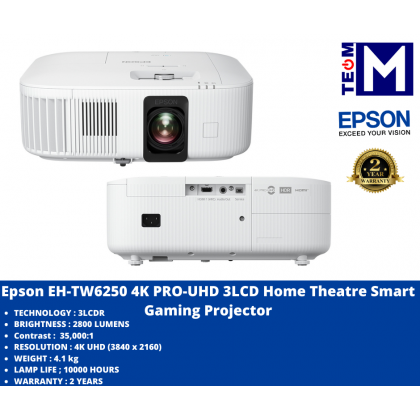

EH-TW6250 |
| Projection Technology |
Projection Technology:
RGB liquid crystal shutter projection system
Specifications of Main Parts:
LCD:
Native Resolution: 1080p
Size: 0.61” wide panel (D10, C2 Fine, 10Bit) |
| Projection Lens |
Projection Lens Type: Optical Zoom
(Manual) / Focus (Manual)
F-Number : 1.49 – 1.77
Focal Length: 18.2 – 29.2 mm
Zoom Ratio: 1 – 1.62
Throw Ratio: 1.32 – 2.15 (Wide – Tele)
Lamp:
Type: 200W UHE
Life (Normal / Eco)*1: 4,500 / 7,500 hours |
| Brightness |
White Light Output (Normal/Eco):
2,800 lm / 1,900 lm
Colour Light Output:
2,800 lm |
| Connectivity |
USB Interface:
USB Type B: 1 (For firmware update and copy OSD settings)
Network:
Wireless: Yes (SMP function only)
Digital Input:
HDMI: 1
Audio Out: Stereo Mini x 1
Control I/O: RS-232C: N/A
Trigger Out (12V): N/A |
| Contrast Ratio |
Contrast Ratio: 35,000:1
Screen Size (Projected Distance):
Standard Size:
80” screen 2.34 to 3.81 m
Zoom : Wide: 40” to 500” [1.15 to 14.83 m]
Zoom : Tele: 40” to 500” [1.89 to 24 m] |
| Geometric Correction |
Vertical Keystone:
±30 degrees |
| Adjustment Functions |
Picture In Picture:
N/A
Aspect Mode:
Yes (Auto / Normal / Full / Zoom )
Frame Interpolation:
Off / Low / Normal / High |
| Image Enhancement |
Image Preset Mode:
Yes
Mpeg Noise Reduction:
Yes
Detail Enhancement:
Yes |
| Start-Up Period |
Start-Up Period:
Under 15 seconds
Warm-up period: 30 seconds |
| Operating Temperature |
Operating Temperature:
5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 30 °C <41 - 86 °F> (Over 2,286m / 7,500ft)
(20% - 80% Humidity, No Condensation) |
| Operating Altitude |
Operating Altitude:
0 m to 3,048 m <0 ft to 10,000 ft> (Over 1,500 m / 4,921 ft : with High Altitude mode) |
| Dimension Excluding Feet (W x H x D) |
Dimension Excluding Feet (W x H x D):
333 x 123 x 275 mm |
| Power |
Power Consumption:
Lamp On (Normal/ECO): 301W / 268W
Network Standby: N/A
Energy Saving: 0.3W |
| Weight |
Weight:
Approx. 4.1kg |
| Direct Power On/Off |
Direct Power On/Off:
Yes / N/A |
| Wireless Specifications (Smart Media Player Function) |
Supported Speed For Each Mode:
IEEE 802.11a (5 GHz),
IEEE 802.11b (2.4 GHz),
IEEE 802.11g (2.4 GHz),
IEEE 802.11n (2.4 GHz and 5 GHz),
IEEE 802.11ac (5 GHz)
Wireless LAN Security:
WPA2/WPA3 PSK (AES)
Wi-Fi Generation:
Wi-Fi 5
Supported OS:
Android OS
Video Output Resolution:
Up to 3840 x 2160 60fps 4:4:4 |
| Cool Down Period |
Cool Down Period:
Under 5 seconds |
| Fan Noise |
Fan Noise (Normal / Eco):
36dB / 28dB |
